914mm RAL6018 Pre Painted Steel Coil Aluzinc Steel Coil

Ask Lasest Price
Brand Name :	RAYMOND
Certification :	ISO14000
Price :	USD500-800/MT
Payment Terms :	L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability :	10000MT/ month
Delivery Time :	45days

Add to Cart

Product Details
Company Profile

914mm RAL6018 Pre Painted Steel Coil Aluzinc Steel Coil

914mm width RAL6018 high strength prime prepainted galvalume steel coil

PPGI (PPGL) Features:

Product name	Pre-painted galvanized/ galvalume steel coil
Grade	JIS G3322 CGCC/CGLCC, ASTM A792, EN10169 DX51D+Z/AZ
Zinc/AZ coating	30 g/m² to 180 g/m²
Top surface	8 - 20 micron polyester + 5 micron primer
Back surface	5 - 7 micron,or 7-8 micron polyester + 5 micron primer
Categories of paint	PE/SMP/PVDF
Color	According to RAL Card or Clients' requests
Coil Weight	Max 13mt
Thickness	0.12-1.5mm
Width	700-1250mm
MinImum order	25MT per size
Payment terms	FCR/FOB/CFR/CIF
Application	Furniture, building, machine parts

MTC of pre painted galvanized steel coil

COMMODITY:		PRE-PAINTED ZINC STEEL SHEET	Contract NO.		HYEXP2010-07-10A				Date:	SEPTEMBER-17-2010
Steel Grade:		ACC JIS G3312, SOFT MATT	Condition of Supply		PRE-PAINTED ZINC STEEL SHEET				Certificate NO.	100710A
No.	Heat No.	Size(mm)	Zinc Coating:	Color side A	Coat property					Steel property
					Pain thick (μm)	T-Bend (T)	Impact (J)	Gloss (GU)	Pencil hard	YS. Re Mpa	UTS. Rm Mpa	EL. A %



1	0710225	0.30X800 MM RAL5012	Z-60	RAL 5012/25 microns	25	3	9	50	3H	360	380	35
2	0710296	0.30X800 MM RAL8004	Z-60	RAL 8004/25 microns	25	3	9	55	3H	365	373	37
3	0710246	0.25X800 MM RAL5012	Z-60	RAL 5012/25 microns	25	3	9	50	3H	358	375	36
4	0710288	0.25X800 MM RAL8004	Z-60	RAL 8004/25 microns	25	3	9	55	3H	355	368	36

Product advantage:

1. Non-pollution

2. Weatherability

3. Corrosion resistance

4. Long service life

Application of Pre Painted Aluminum Coil:

1. Construction:roof for steel structure workshop,airport,storeroom

2. Shipbuilding industry

3. Vehicle manufacturing

4. Furniture industry

5. Electric industry etc.

Competitive Advantage:

1. Reliable and stable Quality

2. Reasonable Price

3. Fast delivery time

4. More Than 10 Years export experience

Annual production: 100, 000 MT/year

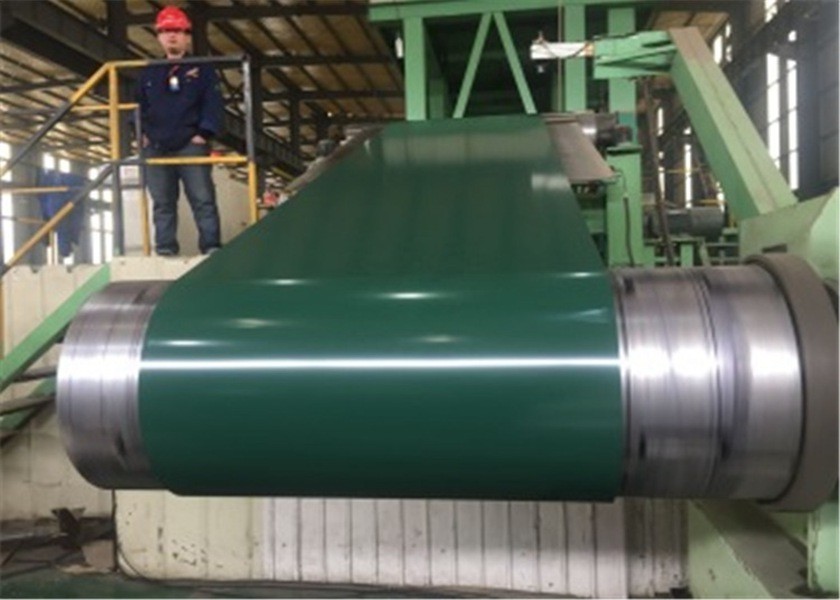

Product Picture

914mm RAL6018 Pre Painted Steel Coil Aluzinc Steel Coil

Product Tags:

914mm Pre Painted Steel Coil

914mm Aluzinc Steel Coil

RAL6018 Pre Painted Steel Coil

914mm RAL6018 Pre Painted Steel Coil Aluzinc Steel Coil
