Galvanized Sgce Color Coated Pre Painted Steel Coil Ral 9014 5016

WUXI RAYMOND STEEL CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Galvanized Sgce Color Coated Pre Painted Steel Coil Ral 9014 5016 from wholesalers

    Buy cheap Galvanized Sgce Color Coated Pre Painted Steel Coil Ral 9014 5016 from wholesalers
    • Buy cheap Galvanized Sgce Color Coated Pre Painted Steel Coil Ral 9014 5016 from wholesalers
    • Buy cheap Galvanized Sgce Color Coated Pre Painted Steel Coil Ral 9014 5016 from wholesalers
    • Buy cheap Galvanized Sgce Color Coated Pre Painted Steel Coil Ral 9014 5016 from wholesalers
    • Buy cheap Galvanized Sgce Color Coated Pre Painted Steel Coil Ral 9014 5016 from wholesalers

    Galvanized Sgce Color Coated Pre Painted Steel Coil Ral 9014 5016

    Ask Lasest Price
    Brand Name : RAYMOND
    Certification : ISO14000
    Price : USD500-800/MT
    Payment Terms : L/C, T/T, Western Union, MoneyGram, D/A, D/P
    Supply Ability : 10000MT/ month
    Delivery Time : 45days
    • Product Details
    • Company Profile

    Galvanized Sgce Color Coated Pre Painted Steel Coil Ral 9014 5016

    colour coated steel coils color coated coil colour coated coil prepainted steel coil


    PPGI (PPGL) Features:


    ProductColored hot dipped galvanized steel in coil
    StandardJIS3302, EN 10142, ASTM A653, SGCC/SGCH,European Standard, ASTM A792,
    Base plate

    Cold rolled steel Coil

    Hot dipped galvanized steel coil(small, regular or zero spangle)

    Hot dipped galvalume steel coil

    EquipmentSPCC GALVANIZED STEEL COIL/SHEET Double coating double baking; three coating three painting
    Thickness0.12mm—1.2mm
    Width914mm—1250mm
    Zinc Coating30g-275g/m2
    Paint Thickness

    Top:15µm-25µm

    Back: 5-8µm

    Coil Weight2.5Mt—8Mt
    Coil IDφ508mm—φ610mm
    Surface paintEP, PE, HDP, SMP, PVDF
    Color seriesRAL color number

    MTC of pre painted galvanized steel coil


    COMMODITY:PRE-PAINTED ZINC STEEL SHEETContract NO.HYEXP2010-07-10ADate:SEPTEMBER-17-2010
    Steel Grade:ACC JIS G3312, SOFT MATTCondition of SupplyPRE-PAINTED ZINC STEEL SHEET
    Certificate NO.
    100710A
    No.Heat No.Size(mm)Zinc Coating:Color side ACoat propertySteel property
    Pain thick (μm)T-Bend (T)Impact (J)Gloss (GU)Pencil hardYS. Re MpaUTS. Rm MpaEL. A %
    107102250.30X800 MM RAL5012Z-60RAL 5012/25 microns2539503H36038035
    207102960.30X800 MM RAL8004Z-60RAL 8004/25 microns2539553H36537337
    307102460.25X800 MM RAL5012Z-60RAL 5012/25 microns2539503H35837536
    407102880.25X800 MM RAL8004Z-60RAL 8004/25 microns2539553H35536836

    Application of Pre Painted Aluminum Coil:
    1. Construction:roof for steel structure workshop,airport,storeroom
    2. Shipbuilding industry
    3. Vehicle manufacturing
    4. Furniture industry
    5. Electric industry etc.

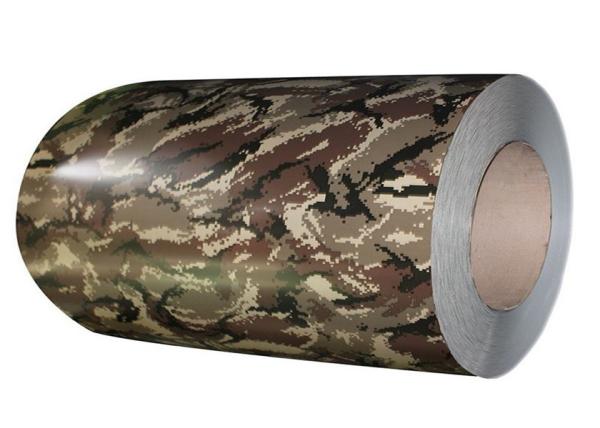

    Product Picture


    Galvanized Sgce Color Coated Pre Painted Steel Coil Ral 9014 5016


    Galvanized Sgce Color Coated Pre Painted Steel Coil Ral 9014 5016
