DX53D AZ180 ASTM A792 GALVALUME CORRUGATED ROOF SHEETS SHEETING
LINE
1) Specification
| Production Name: | Hot Dipped galvalume corrugated metal roofing sheet |
| Grade | Material as per JIS G3322 CGLCC,ASTM A792,EN10169 DX51D+AZ |
| AZ coating | 20 g/m² to 275 g/m² |
| Top surface | 15 - 20 micron polyester + 5 micron primer |
| Back surface | 5 - 7 micron,or 7-8 micron polyester + 5 micron primer |
| Color | According to RAL Card or Clients' requests |
| Thickness | 0.14-1.5mm |
| Effective width | 800/820/840/880/900mm |
| Length | 1500-3800mm |
| Wave width | 76mm or as customer's request |
| Height of wave | 17mm or as customer's request |
| MinImum order | 50MT per size |

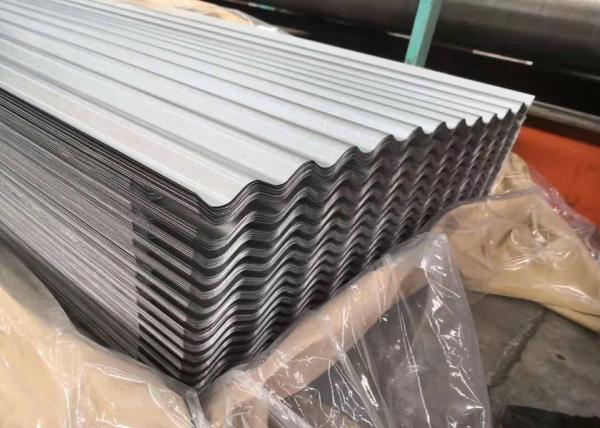

Product Picture
Applications:
It is suitable for industrial and civil buildings, warehouse,
special construction, large-span steel structure housing the roof,
walls and interior and exterior decoration. A lightweight, high
strength, color-rich, convenient construction, earthquake, fire,
rain, long life, maintenance-free characteristics, has been widely
used.
Product advantage:
Steel housing panels, mobile home panels.
(1) modeling beautiful novel, rich colors, decorative, flexible
combination, can express different
(2) construction easy installation, reducing installation,
transportation workload, shorten the construction period;
(3) The pressure plate is environmentally friendly building
materials, recyclable, promote the use of steel sheeting
line with the policy of sustainable development of the national
economy;
Competitive Advantage:
. Reliable and stable Quality
. Reasonable Price
. Fast delivery time
. More Than 10 Years export experience
