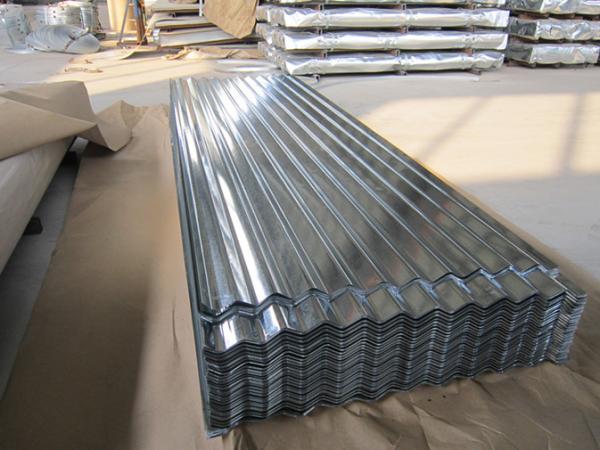

SGCC Galvanized Corrugated Roofing Sheet
1) Specification
a. Thickness: 0.14-1.5mm
b. Effective width:650/800/890/900/1050mm
c. Length:1500—3800mm
d. Wave Width: 76mm
e. Height of Wave: 17mm–17.5mm
f. Double size galvanized, 60-275g/m2
2). Steel Grade: SGCC
3). Standard:JIS G3302
4). Surface: Regular spangle or Min spangle
Applications:
It is suitable for industrial and civil buildings, warehouse,
special construction, large-span steel structure housing the roof,
walls and interior and exterior decoration. A lightweight, high
strength, color-rich, convenient construction, earthquake, fire,
rain, long life, maintenance-free characteristics, has been widely
used.
Product advantage:
Steel housing panels, mobile home panels.
(1) modeling beautiful novel, rich colors, decorative, flexible
combination, can express different
(2) construction easy installation, reducing installation,
transportation workload, shorten the construction period;
(3) The pressure plate is environmentally friendly building
materials, recyclable, promote the use of steel sheeting
line with the policy of sustainable development of the national
economy;
Competitive Advantage:
. Reliable and stable Quality
. Reasonable Price
. Fast delivery time
. More Than 10 Years export experience
Mill Test Certificate:
| | | | | | | |
| No. | Heat No. | Size:(mm) | Quantity | Chemical Composition(%) | Physical Spec | Final |
| | | | ( MT) | C | Si | Mn | P | S | Tensile strength | Enlongation | Yield Strength | |
| | | | | (Mpa) | (%) | (N/mm2) | |
| 1 | 120904220 | 0.18mmx1000mmx2000mm | | 0.06 | 0.03 | 0.21 | 0.014 | 0.008 | 365 | 38 | 235 | A |
| 2 | 120904230 | 0.20mmx1000mmx2000mm | | 0.06 | 0.02 | 0.20 | 0.015 | 0.009 | 365 | 38 | 230 | A |
| 3 | 120904240 | 0.25mmx1000mmx2000mm | | 0.06 | 0.02 | 0.21 | 0.016 | 0.007 | 360 | 37 | 235 | A |
| 4 | 120904250 | 0.30mmx1000mmx2000mm | | 0.06 | 0.02 | 0.18 | 0.014 | 0.007 | 370 | 37 | 245 | A |
| | | | | | | | | | | | | |
Uasge:
1) Roof
2) Wall
3) Ceiling
4) Fence
Installation methods:
It is strongly recommended that sheets are laid with the side laps
facing away from the direction of the prevailing wind. Where
possible, the roof sheets should be fixed with the side laps facing
away from the normal line of sight.

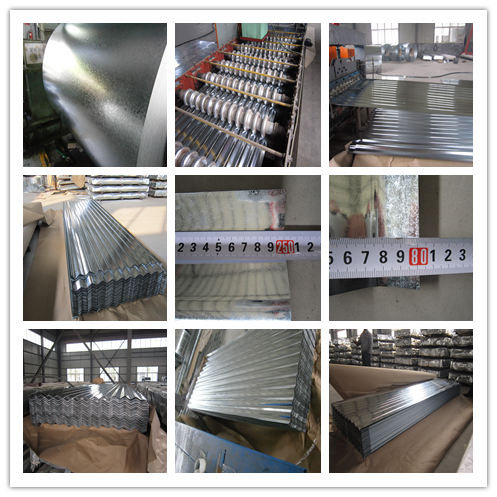

Package Picture:
